Openlayer加载GeoServer发布的WMS

留言

CDN

1
2
<link rel="stylesheet" href="https://openlayers.org/en/v3.20.1/css/ol.css" type="text/css">
<script src="https://openlayers.org/en/v3.20.1/build/ol.js" type="text/javascript"></script>

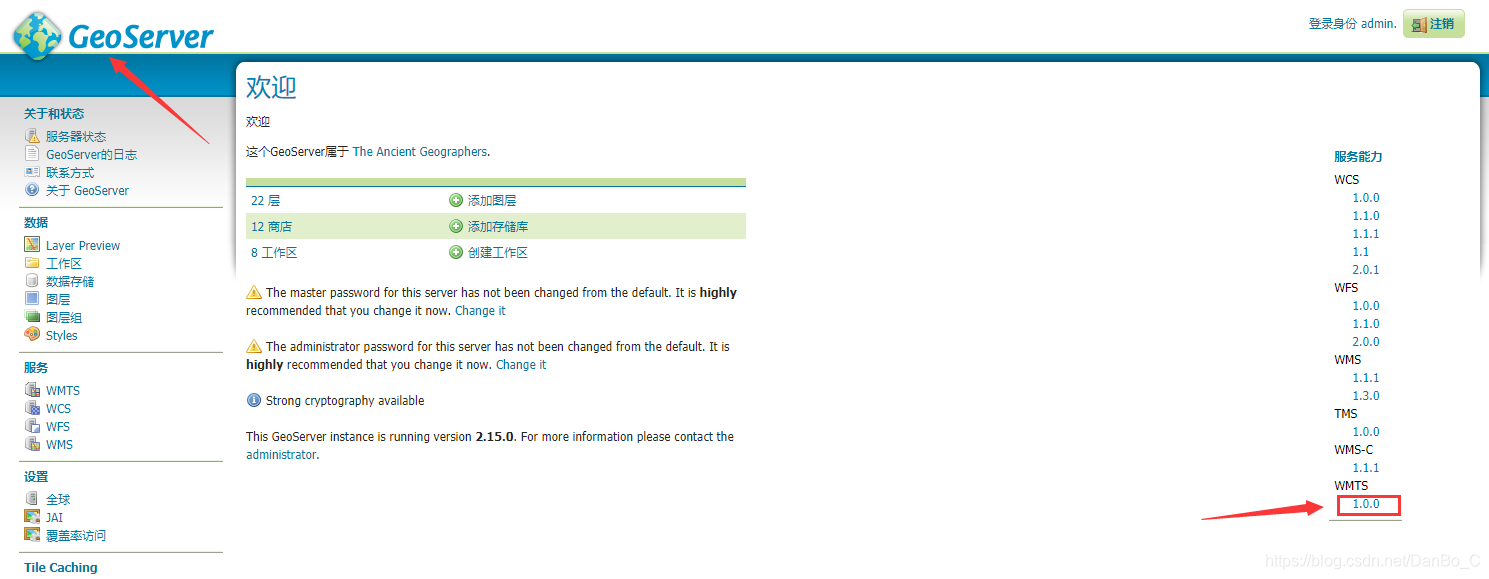

1. 点击Logo -》版本号 -》查看自己的wms地址


2. 设置范围


将图中的范围以此填写到

1
var extent = [924029.4389153644, 3148870.100464709, 975418.6183263285, 3193088.3305712156];
3. 设置sourse
1
2
3
4
5
6
7
8
source: new ol.source.TileWMS({
                   url: 'http://localhost:8089/geoserver/webgis_test/wms',
                   params: {
                       'LAYERS': 'webgis_test:beijing',
                       'TILED': false
                   },
                   serverType: 'geoserver'
               })
  • url为刚才找到的wms地址

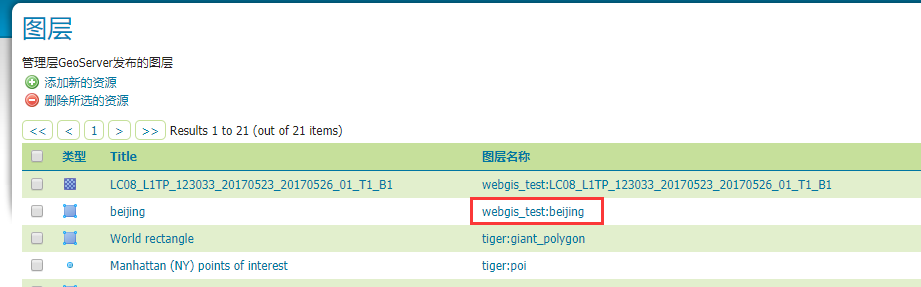

  • ‘LAYERS’的值为图层名称

4. 定义地图对象
1
2
3
4
5
6
7
8
9
10
11
12
var map = new ol.Map({
             layers: tiled,
             target: 'map',
             view: new ol.View({
                 projection: 'EPSG:3857',
                 zoom: 4
             }),
             controls: ol.control.defaults({
                 attributionOptions: {
                     collapsible: false
                 }
             })

修改projection: 'EPSG:3857',中的3857为图层的坐标代码

完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
<!doctype html>
<html lang="en">

<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=0">
    <meta name="apple-mobile-web-app-capable" content="yes">
    <link rel="stylesheet" href="https://openlayers.org/en/v3.20.1/css/ol.css" type="text/css">
    <script src="https://openlayers.org/en/v3.20.1/build/ol.js" type="text/javascript"></script>

    <title></title>
</head>

<body onload="init()">
    <h2>WMS</h2>
    <div id="map" style="height: 900px; width: 100%;"></div>
    <script type="text/javascript">
        //基于openlayers3
        function init() {
            //WMS的边界范围
            var extent = [924029.4389153644, 3148870.100464709, 975418.6183263285, 3193088.3305712156];

            var tiled = [
                new ol.layer.Tile({
                    source: new ol.source.TileWMS({
                        url: 'http://localhost:8089/geoserver/webgis_test/wms',
                        params: {
                            'LAYERS': 'webgis_test:beijing',
                            'TILED': false
                        },
                        serverType: 'geoserver'
                    })
                })
            ];
            //定义地图对象
            var map = new ol.Map({
                layers: tiled,
                target: 'map',
                view: new ol.View({
                    projection: 'EPSG:3857',
                    zoom: 4
                }),
                controls: ol.control.defaults({
                    attributionOptions: {
                        collapsible: false
                    }
                })
            });

            map.getView().fit(extent, map.getSize());
        }
    </script>
</body>

</html>

结果
